swiftDialog Inspect Mode

The SwiftDialog Inspect Mode is a new built-in feature that enables real-time monitoring within the macOS filesystem. It tracks filesystem status (utilizing Apple’s FSEvents API) while monitoring application installations and inspecting cache folders, files, and plist content to visualize compliance checks. This feature is specifically designed for use during device enrollment, software deployment, and compliance auditing, providing end users with clear visibility into their compliance status.

Overview

Inspect Mode continuously monitors the specified file paths and cache directories to track the status of applications or system components. It provides visual feedback through various preset layouts, each tailored for different use cases.

Key Features

• Real-time file system monitoring
• Download progress detection via cache monitoring
• Multiple visual presets for different scenarios
• Plist-based simple validation (bool, string, and exists)
• Customizable theming and branding (limited)
• Auto-enabling buttons upon completion

Getting Started

Basic Usage

1. Create a JSON configuration file:

{
  "title": "Application Installation",
  "items": [
    {
      "id": "app1",
      "displayName": "Microsoft Word",
      "guiIndex": 0,
      "paths": ["/Applications/Microsoft Word.app"]
    }
  ]
}

order of items

Important: guiIndex must be unique and sets the order of the items in the GUI. Lower numbers are displayed first.

2. Launch swiftDialog with inspect flag:

/usr/local/bin/dialog --inspect-mode --inspect-config /path/to/config.json

3. Optionally, set the config file path environment variable:

export DIALOG_INSPECT_CONFIG="/path/to/config.json"
/usr/local/bin/dialog --inspect-mode

JSON Configuration Reference

Root Level Keys

Key	Type	Required	Default	Description
preset	String	No	”preset1”	Visual layout preset (preset1-7)
title	String	No	”System Inspection”	Window title
message	String	No	-	Main message text
icon	String	No	-	Icon path or SF Symbol (e.g., “sf=shield.fill”)
size	String	No	”standard”	Window size: “compact”, “standard”, “large”
width	Integer	No	-	Custom window width (overrides size)
height	Integer	No	-	Custom window height (overrides size)
cachePaths	Array	No	-	Directories to monitor for downloads
scanInterval	Integer	No	2	File system scan interval in seconds
button1text	String	No	”OK”	Primary button text
button1disabled	Boolean	No	false	Disable primary button initially
button2text	String	No	”Cancel”	Secondary button text
button2visible	Boolean	No	true	Show secondary button
autoEnableButton	Boolean	No	true	Auto-enable button when complete
autoEnableButtonText	String	No	”OK”	Button text when auto-enabled
items	Array	Yes	-	Array of items to inspect

Visual Customization Keys

Key	Type	Default	Description
banner	String	-	Banner image path (overrides icon)
bannerHeight	Integer	100	Banner height in pixels
bannerTitle	String	-	Title overlay on banner
highlightColor	String	”#808080”	Accent color (hex)
backgroundColor	String	-	Background color (hex)
backgroundImage	String	-	Background image path
backgroundOpacity	Double	1.0	Background opacity (0-1)
textOverlayColor	String	-	Text overlay color for backgrounds
gradientColors	Array	-	Array of hex colors for gradient
iconBasePath	String	-	Base path for relative icon paths
appearance	String	”auto”	Force the inspect window appearance: "dark", "light", or "auto" (follow the OS). Overrides the OS setting in both directions.

Items Configuration

Each item in the items array requires:

Key	Type	Required	Description
id	String	Yes	Unique identifier
displayName	String	Yes	Display name in UI
guiIndex	Integer	Yes	Sort order (0-based)
paths	Array	Yes	File paths to check for existence
icon	String	No	Item-specific icon
plistKey	String	No	Plist key to validate
expectedValue	String	No	Expected plist value
evaluation	String	No	Evaluation type: “equals”, “boolean”, “exists”, “contains”, “range”
description	String	No	Optional description shown below the item title (rendered by presets 1, 2, 3, 5 and 6)

Advanced Features

Cache Monitoring

Monitor download directories to detect in-progress installations:

{
  "cachePaths": [
    "/Library/Managed Installs/Cache",
    "/Library/Application Support/Installomator/Downloads",
    "/Library/Application Support/JAMF/Downloads",
    "/Library/Application Support/AirWatch/Data/Munki/Managed Installs/Cache"
  ],
  "scanInterval": 5,
  "cacheExtensions": ["download", "pkg", "dmg", "aria2"]
}

By default, files ending in .pkg, .dmg, and .download within cachePaths mark a matching item as downloading. Set cacheExtensions to change that list — for example, add aria2 so aria2c’s <name>.aria2 partial files are detected (issue #617). The leading dot is optional.

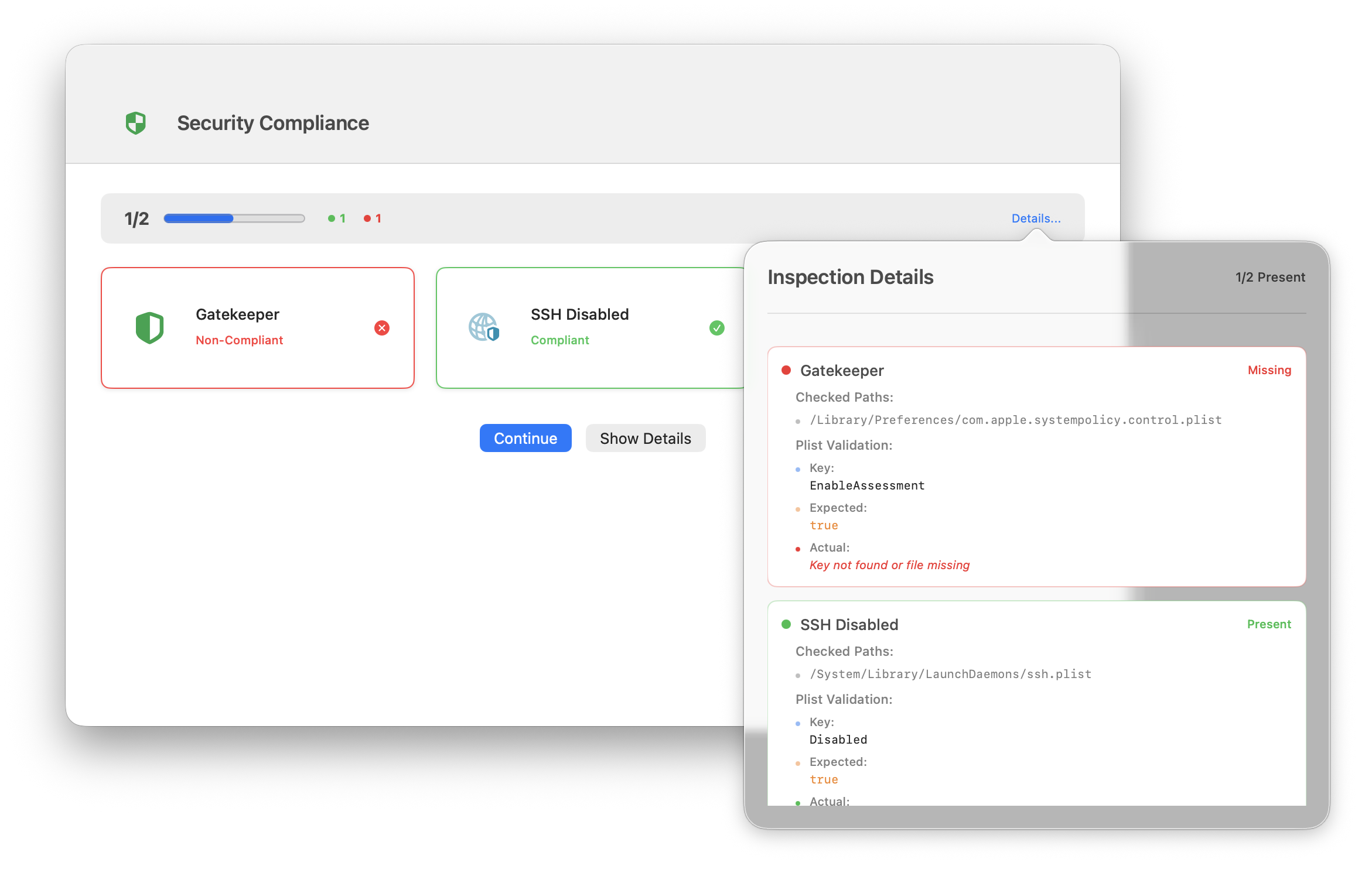

Plist Compliance Validation

Validate system configuration using plist checks:

{
  "preset": "preset5",
  "items": [{
    "id": "findmymac",
    "displayName": "Find My Mac Status",
    "guiIndex": 0,
    "paths": ["/Library/Preferences/com.apple.FindMyMac.plist"],
    "plistKey": "FMMEnabled",
    "expectedValue": "true",
    "evaluation": "boolean"
  }]
}

Custom Color Thresholds

Define custom compliance levels and colors:

{
  "colorThresholds": {
    "excellent": 0.95,
    "good": 0.80,
    "warning": 0.60,
    "excellentColor": "#00C853",
    "goodColor": "#2196F3",
    "warningColor": "#FF9800",
    "criticalColor": "#F44336"
  }
}

Compliance Dashboards

For plist-driven compliance reporting, add a top-level plistSources array. swiftDialog aggregates the referenced plists into categories with pass/total counts and an overall score, then renders them through the compliance-summary and findings-list content blocks (and any bento cells), refreshing on an interval.

{
  "plistSources": [
    {
      "path": "/Library/Preferences/com.company.compliance.plist",
      "type": "compliance",
      "healthyLabel": "Compliant",
      "attentionLabel": "Action Required"
    }
  ],
  "guidance": [
    { "type": "compliance-summary" },
    { "type": "findings-list" }
  ]
}

plistSources[] properties:

Key	Type	Default	Description
path	String	-	Path to the plist file
type	String	-	Source type: compliance, health, licenses, preferences, or custom
healthyLabel	String	”Healthy”	Label for a passing check (appears in summary cards, findings rows and bento subtitles)
attentionLabel	String	”Needs Attention”	Label for a failing check
successValues	Array	-	Values that indicate success
expectedValue	String	-	Expected value for compliance
findingKey	String	”finding”	Subkey to read the finding detail from
timestampKey	String	auto	Key holding the last-check time (auto-tries lastComplianceCheck, LastUpdateCheck, lastCheck, timestamp)
includePattern	String	-	Regex of keys to include in auto-discovery
excludeKeys	Array	-	Keys to exclude from auto-discovery
keyMappings	Array	-	How to interpret specific plist keys
maxCheckDetails	Integer	15	Max check items shown per category
icon	String	-	SF Symbol for the category

Content blocks that render the aggregated data:

• compliance-summary — a banner with the overall status plus per-category stat cards.
• findings-list — a category-grouped, disclosable list of individual checks.

Bento cells also auto-bind to the same data: a cell’s subtitle and icon colour
update from live findings, with no extra schema fields required.

Complete Examples

Basic Application Installer

{
  "title": "Installing Office Suite",
  "message": "Please wait while we install your applications",
  "preset": "preset1",
  "icon": "sf=apps.iphone.badge.plus",
  "iconBasePath":"/Users/Shared/icons/",
  "cachePaths": ["/Users/Shared/Downloads"],
  "button1text": "Please Wait...",
  "button1disabled": true,
  "autoEnableButton": true,
  "autoEnableButtonText": "Continue",
  "items": [
    {
      "id": "microsoft_word",
      "displayName": "Microsoft Word",
      "guiIndex": 0,
      "paths": ["/Applications/Microsoft Word.app"],
      "icon": "Microsoft Word.png"
    },
    {
      "id": "microsoft_excel",
      "displayName": "Microsoft Excel",
      "guiIndex": 1,
      "paths": ["/Applications/Microsoft Excel.app"],
      "icon": "Microsoft Excel.png"
    },
    {
      "id": "microsoft_powerpoint",
      "displayName": "Microsoft PowerPoint",
      "guiIndex": 2,
      "paths": ["/Applications/Microsoft PowerPoint.app"],
      "icon": "Microsoft PowerPoint.png"
    }
  ]
}

iconBasePath

Define a base path for item icons to simplify configuration, image names are loaded from iconBasePath when available. Otherwise, specify full path for an item.

Troubleshooting

Configuration Not Loading

• Verify JSON syntax using jq or online validators
• Check file permissions (must be readable)
• Ensure environment variable is properly exported

Items Not Detecting

• Verify exact file paths (case-sensitive)
• Check if paths require admin privileges
• Use cachePaths for download detection
• Increase scanInterval for slower systems

Debug Mode

Enable debug output:

/usr/local/bin/dialog --inspect-mode --debug

export DIALOG_DEBUG=1
/usr/local/bin/dialog --inspect-mode

Common Environment Variables

• DIALOG_INSPECT_CONFIG: Path to configuration JSON
• DIALOG_DEBUG: Enable debug logging
• DIALOG_COMMAND_FILE: Custom command file path

Best Practices

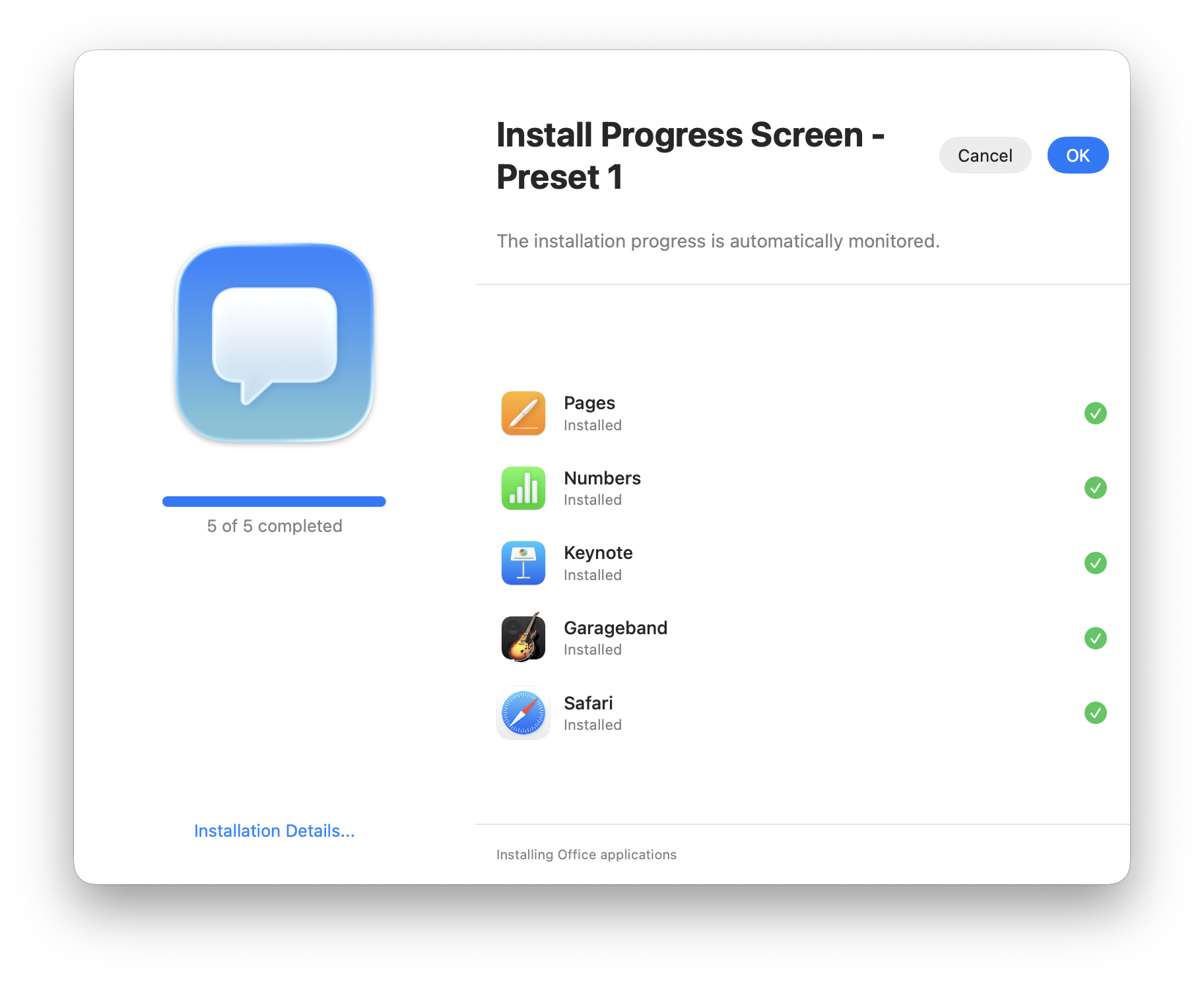

1. Start Simple: Begin with preset1 and minimal configuration
2. Test Paths: Verify all file paths exist or will exist
3. Use Cache Monitoring: Add cachePaths for download detection
4. Icon Management: Store icons in a central location with iconBasePath
5. Button States: Use autoEnableButton for better UX
6. Appropriate Presets: Choose presets based on use case:

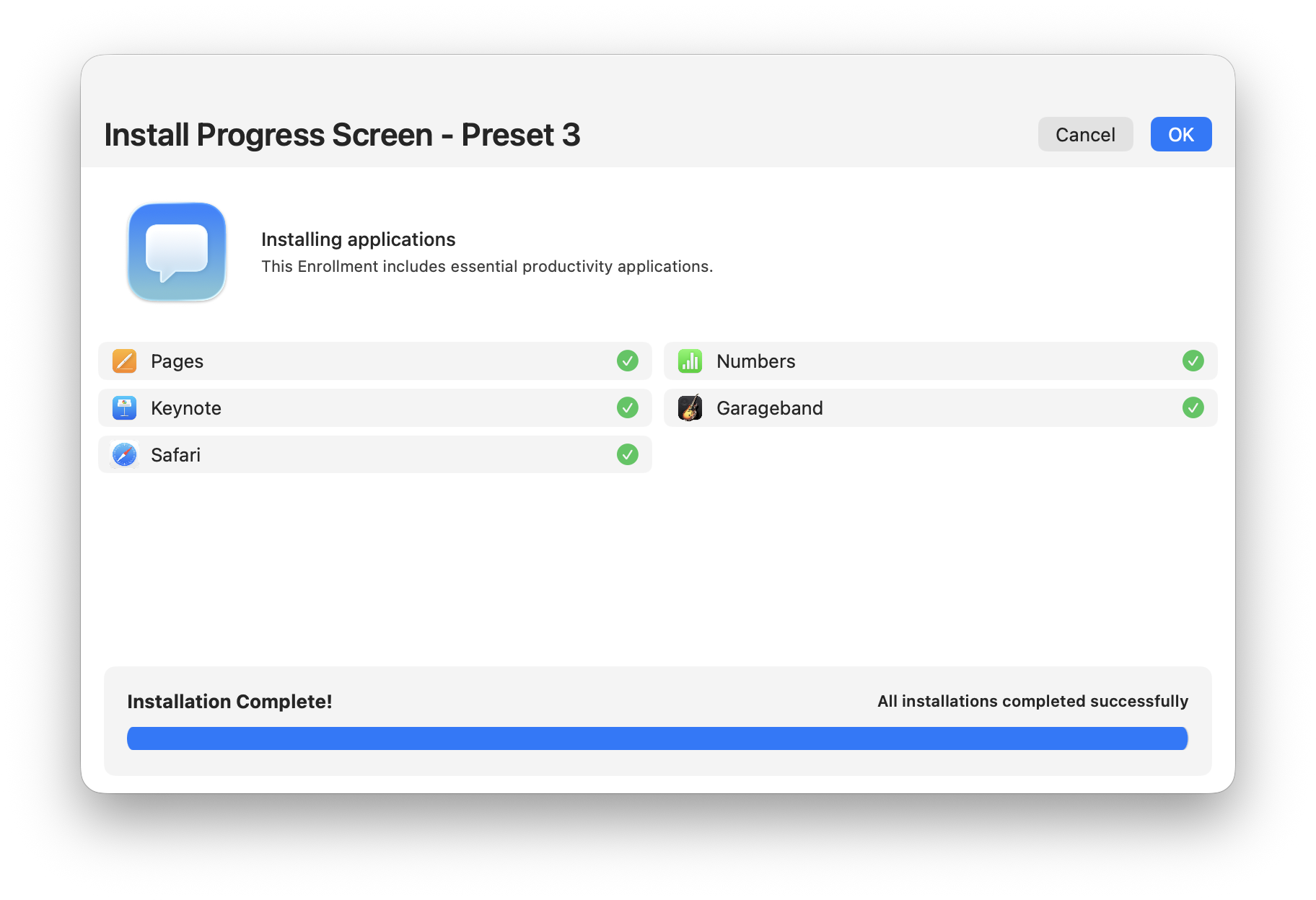

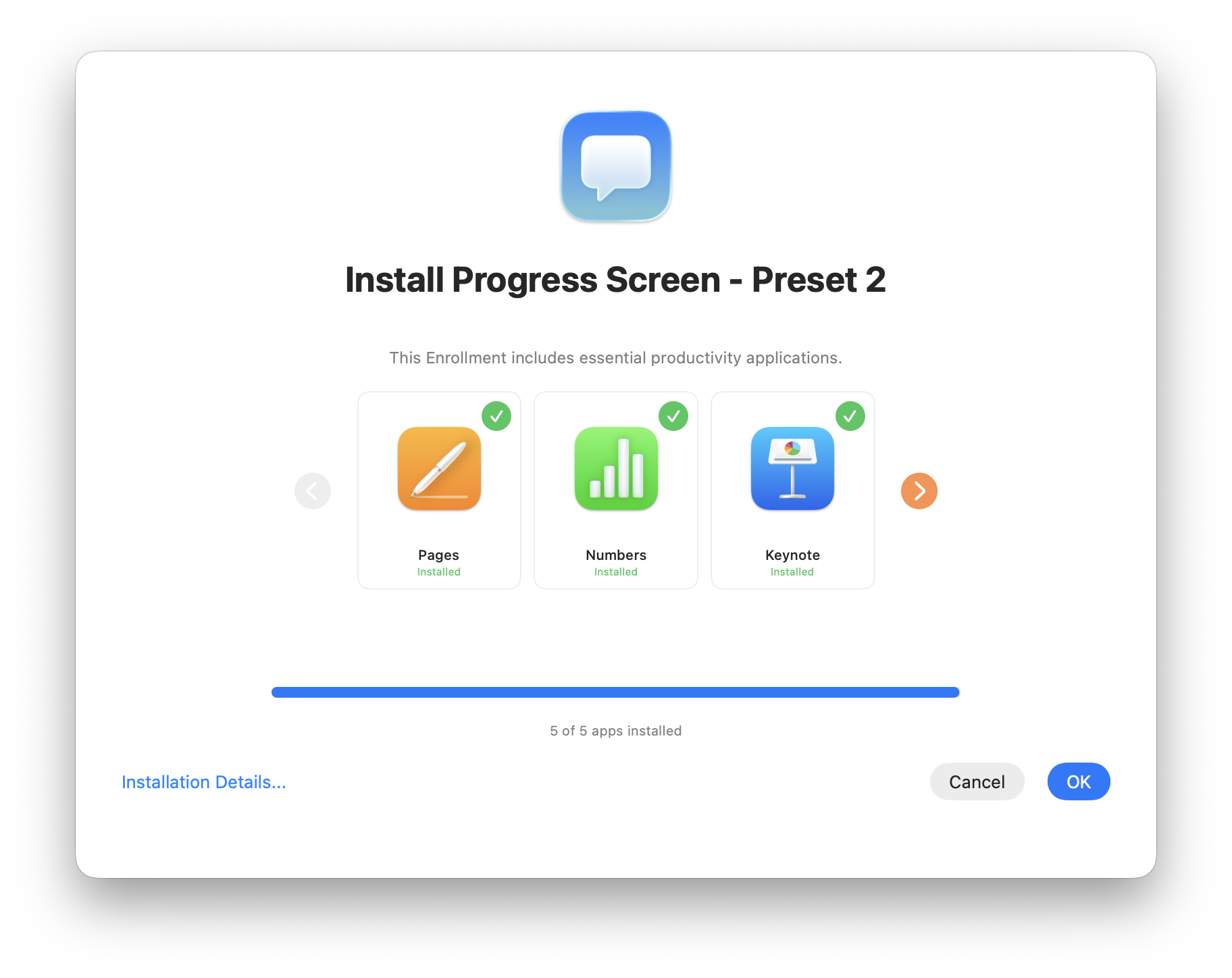

   • Installation tracking: Preset 1 or 2 or 3

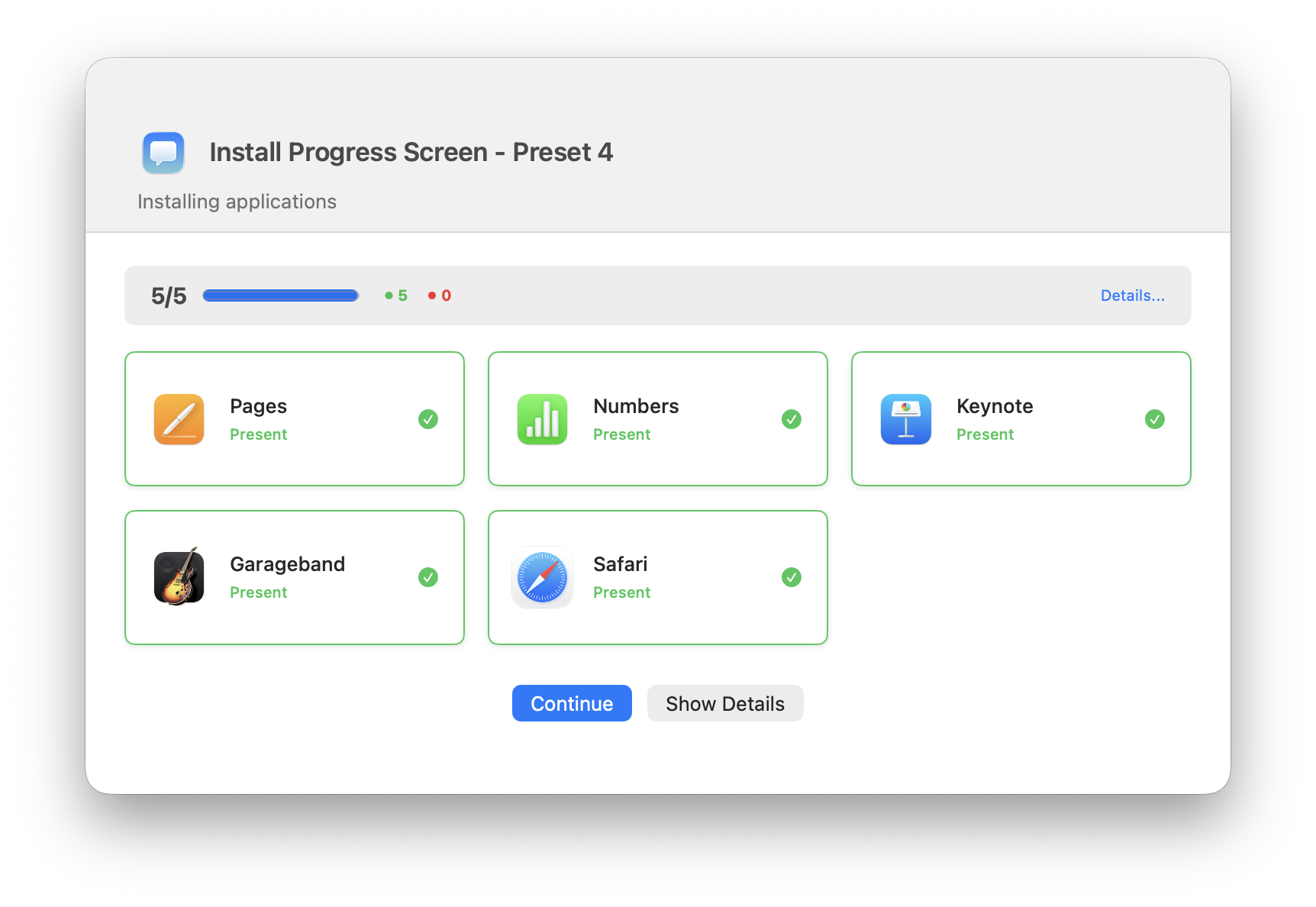

   • Compliance display: Preset 4
